Introduction
Picture a driver merging onto the highway, checking mirrors, signaling, and still missing a car tucked just behind the trailer's rear axle. That split-second gap is where lane-change collisions happen every day on U.S. roads.
FMCSA's Large Truck Crash Causation Study attributes 14% of large-truck crashes to inadequate surveillance, including lane changes and turns. Roughly a third of car-truck collisions occur in a truck's "No-Zone" areas.
Blind spot monitoring systems close that gap using radar, cameras, or both to spot vehicles drivers can't see.
This guide covers how these systems work, why they matter for commercial fleets, whether you can retrofit one, and how to pick the right solution.
Key Takeaways
- Radar, camera, or combined sensors flag hazards outside the driver’s view before they become incidents
- Trucks and commercial fleets benefit most—larger vehicles create larger blind spots
- Aftermarket retrofitting is legal and common; no federal mandate exists yet
- Fleet platforms like Azuga pair collision data with GPS tracking for safety coaching and dispute resolution
What Is a Blind Spot Safety Monitoring System?
A blind spot monitoring (BSM) system is driver-assistance technology that detects vehicles, cyclists, or pedestrians in the zones a driver's mirrors and eyes can't cover. When something enters that zone, the system triggers a visual, audible, or haptic alert.
There's no single industry-standard detection zone size. As one reference point, Ram's 2022 truck manual describes side radar sensors covering roughly 12 feet wide and 10 feet behind the rear bumper, which is helpful context but not a universal benchmark across manufacturers.
What Does "Check Blind Spot Safety System" Mean?
If your dashboard shows this message, it's not a live hazard warning. It means the system itself has detected a fault — a blocked sensor, wiring issue, or calibration problem — and needs inspection before it can reliably detect real hazards again.
BSM vs. Other ADAS Features
- Lane-keep assist nudges the vehicle back into its lane; BSM only alerts; it doesn't steer
- Rear cross-traffic alert extends radar coverage while reversing, catching traffic crossing behind the vehicle
- BSM specifically watches the adjacent lanes beside and slightly behind the vehicle
For commercial fleets, this matters more than for passenger cars. Trucks and vans have longer blind zones, spend more hours on the road, and carry higher liability exposure per incident.

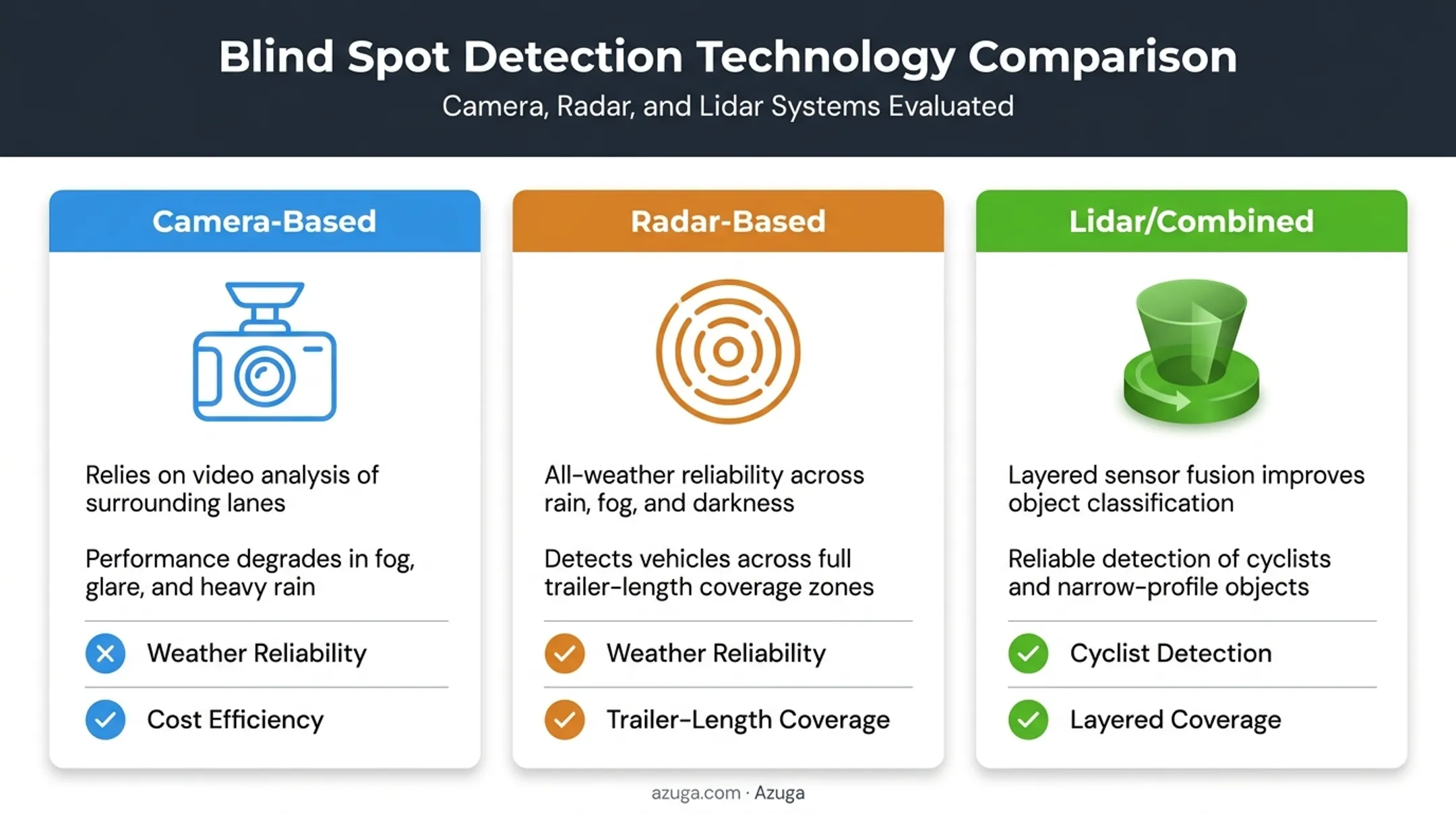

How Blind Spot Monitoring Systems Work
Camera-Based Systems
Camera-based blind spot monitoring (BSM) analyzes live video feeds to visually identify objects entering the blind spot zone, then displays that footage or triggers an alert. These systems depend on image quality and can struggle with dirt, glare, or low light.
Radar-Based Systems
Radar transceivers mounted in the rear corners create a detection field that stays reliable in fog, darkness, and night driving, conditions where cameras often falter. Bosch's commercial-vehicle radar systems, for example, monitor lanes along the entire trailer length and trigger mirror indicators plus an audible warning when the turn signal activates.
Lidar and Combined Systems
Lidar and combined radar-camera setups offer the most complete coverage, particularly for spotting smaller road users like cyclists that radar alone might miss. A U.S. DOT commercial evaluation documented an infrared/laser array that built a 3D detection zone and used mirror-mounted LED alerts—an example of this layered approach.
Typical alert sequence:
- Indicator light appears on the mirror or A-pillar
- Audible warning sounds if the turn signal is activated toward the occupied lane
- Some systems add automatic braking or steering correction as a final layer
Side-lane alerts are only part of the picture. Cross-traffic alert is a related but separate function: it extends the radar field while reversing to catch traffic crossing behind the vehicle, rather than monitoring adjacent lanes during forward driving.
Why Blind Spot Monitoring Matters for Fleet Safety
Commercial vehicles carry bigger blind zones and spend far more hours on the road than passenger cars, which compounds both accident risk and liability exposure.

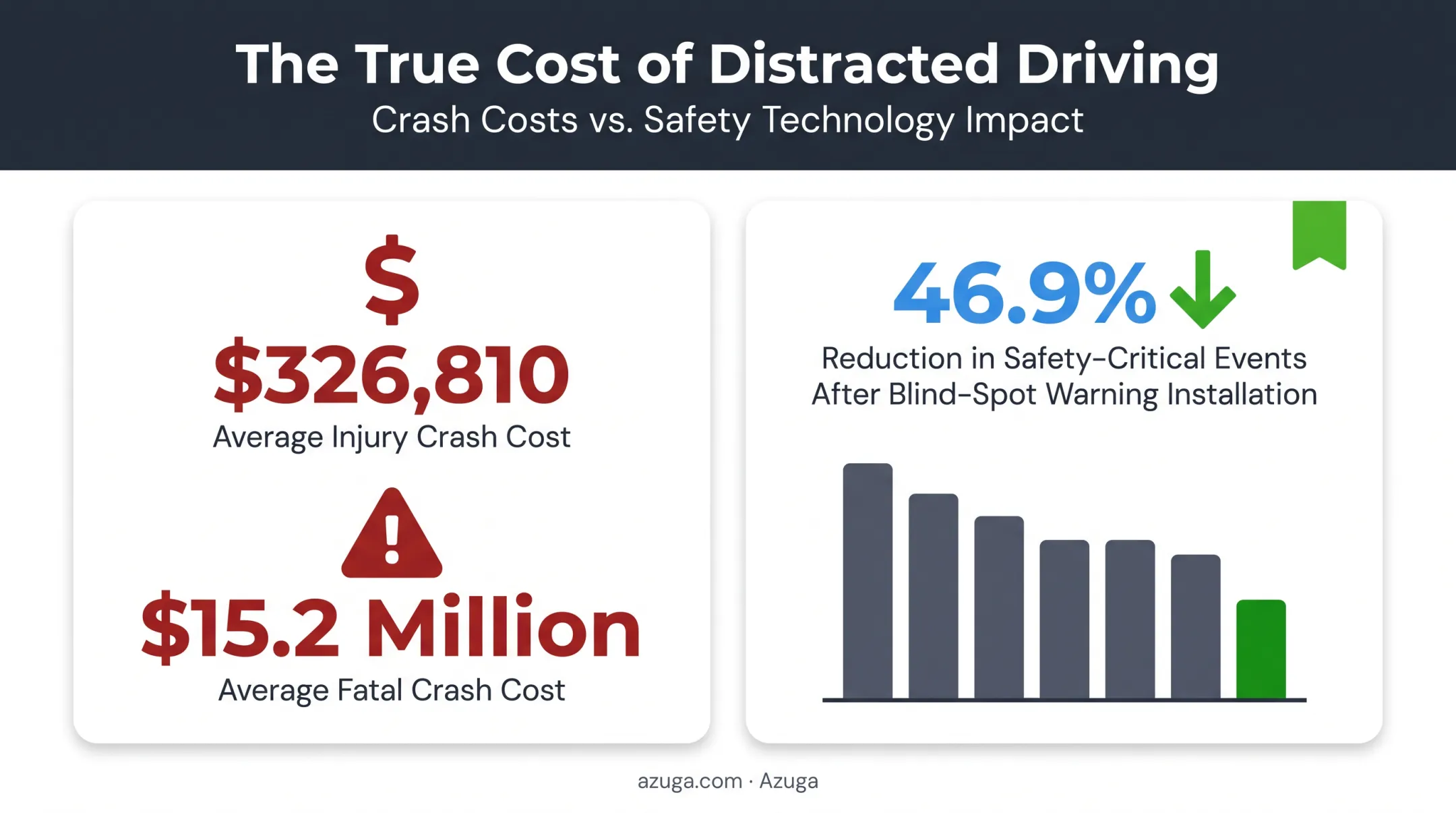

FMCSA's 2025 Crash Cost Methodology puts the cost of a single injury crash involving a large truck at $326,810, and a fatal crash at over $15.2 million in 2023 dollars. These are broad crash-cost benchmarks, not blind-spot-specific figures, but they show what one preventable lane-change incident can cost.
A U.S. DOT field evaluation of 20 commercial vehicles running 722,639 miles over 11 months found blind-spot-warning-related safety-critical events dropped by 46.9% after the technology was installed. That result covers one system and fleet sample, not every operation, but it is a strong signal on preventable side-swipe and lane-change risk.
Layering Safety Data for Full Visibility

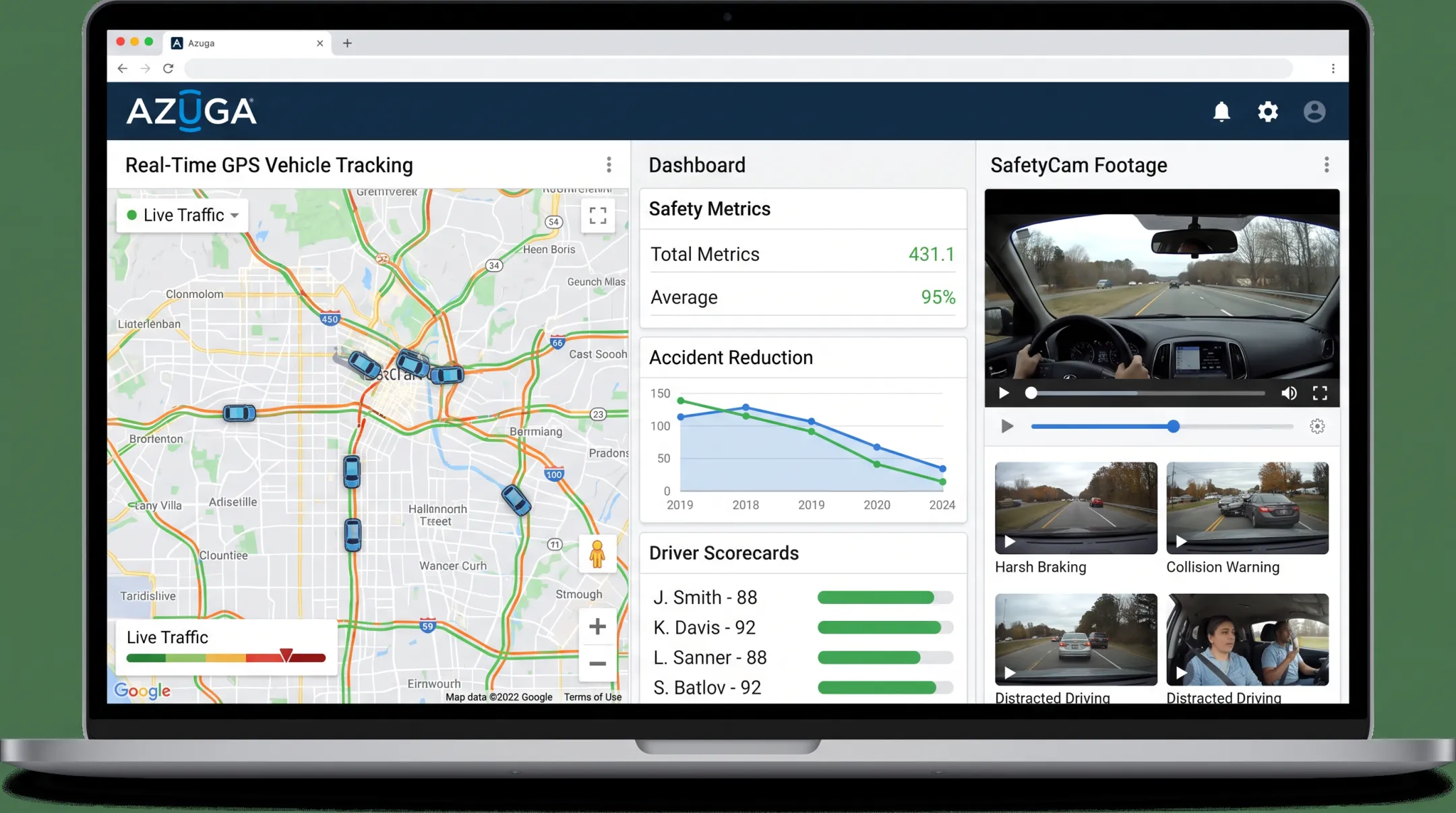

Blind spot alerts are useful on their own, but they're most valuable combined with broader fleet visibility. Azuga's platform pairs real-time GPS tracking (updated every 30 seconds) with SafetyCam AI dashcams that capture road-facing and driver-facing video.
When a collision-adjacent event happens, SafetyCam's Collision Reconstruction analyzes the footage to help determine what actually occurred. Azuga customers report that evidence has helped exonerate drivers who weren't at fault. Azuga's data shows 70% of accidents aren't the driver's fault, so video context is often as important as the alert itself.
Fleets that layer blind-spot alerts with tracking and video typically gain
- An average 38% decrease in accidents among Azuga customers
- Road- and driver-facing footage that supports fault determination after a near-miss or impact
- High-frequency GPS context (30-second updates) around the same events, without a lengthy install (plug-and-play OBD-II in under 20 seconds)
None of this replaces a dedicated blind spot sensor. It does build the layered safety record fleet managers need to cut incidents and push back on unwarranted claims.
Can You Add Blind Spot Sensors to Your Vehicle?
Yes. Aftermarket blind spot sensor kits, including radar-based systems, can be professionally installed on most fleet vehicles, including light-duty trucks and commercial vans. Before you retrofit, keep these points in mind
- No federal mandate exists. FMVSS 127 (2024) covers automatic emergency braking for light vehicles, not blind spot monitoring. NHTSA may add BSM to NCAP later, but that is a rating program, not a legal requirement.
- Professional installation matters. Commercial vehicles have different bumper heights, trailer configurations, and sensor placement needs than passenger cars, so calibration has to account for that.
- Don't disable existing safety equipment. Federal law (49 U.S.C. 30122) prohibits installers from knowingly making required safety equipment inoperative during a retrofit. DOT resource documents machine-vision blind spot installations on buses and large trucks at $5,000-$6,000 per vehicle. Use that as a benchmark; actual costs vary by vehicle type and sensor setup.

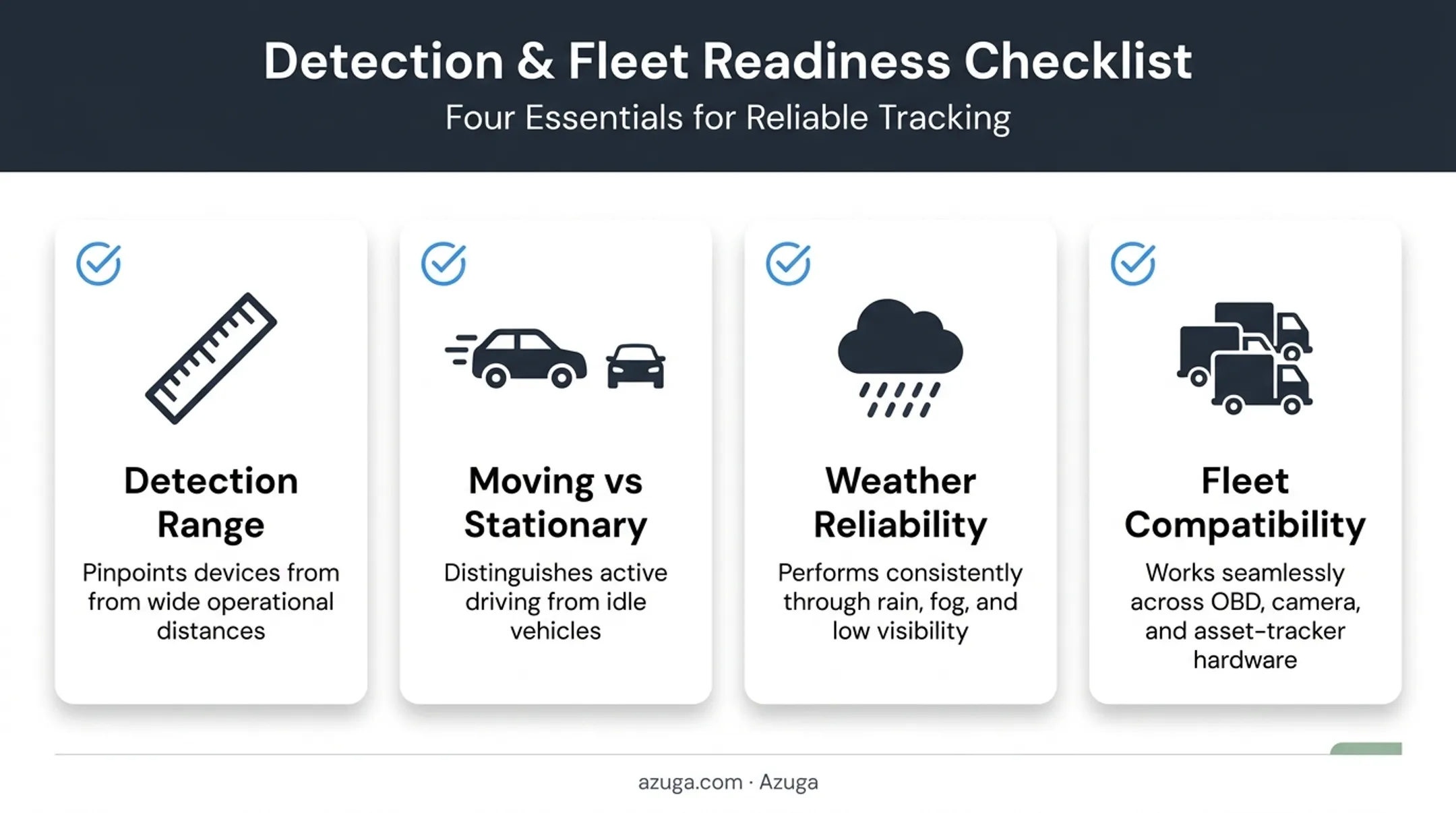

Choosing the Best Blind Spot Safety System
Before committing to a system, evaluate it against these criteria
- Detection range: Covers the full trailer length, not just the cab
- Moving vs. stationary detection: Flags parked cars and stopped cyclists, not only moving objects
- Weather reliability: Holds up in fog, rain, and darkness—radar typically outperforms cameras here
- Fleet compatibility: Works across your existing mix of vehicles and trailers
Fleet managers should look past single-vehicle blind spot add-ons. Integrated platforms that combine blind spot data with GPS tracking, dashcams, and driver scorecards deliver more day-to-day value: one dashboard instead of five disconnected tools.
Before purchasing, request a live demonstration. Confirm the system detects both moving vehicles and stationary hazards under real-world conditions, not just in a controlled test lane.
Frequently Asked Questions
Can I add blind spot sensors to my car?
Yes. Aftermarket radar or camera kits can be retrofitted to most vehicles, including fleet trucks and SUVs. Professional installation is recommended so sensors are placed and calibrated correctly.
What is the best blind spot safety system for cars?
Combined radar-and-camera systems offer the most reliable detection across weather and lighting conditions. For commercial fleets, platforms that tie blind spot alerts to GPS tracking and video safety tools add the most operational value.
What is a blind spot safety system?
A blind spot safety system is driver-assistance technology that detects vehicles, cyclists, or pedestrians in areas you can't see directly or in mirrors. It warns the driver with visual, audible, or vibration alerts.
What does "check blind spot safety system" mean?
It signals a sensor fault, blockage, or calibration problem, not an active hazard in your blind spot. Have the vehicle inspected before relying on the system again.
Are blind spot monitors legally required for commercial fleets?
No federal mandate currently requires blind spot monitors on commercial vehicles. Adoption is encouraged, and some state legislation has proposed future requirements, though none are enacted yet.
How much do blind spot monitoring systems cost to install?
Documented commercial machine-vision installs on buses and large trucks vary widely by vehicle type and sensor setup. Integrated fleet safety platforms usually add separate hardware and software fees, so request a quote for your vehicle mix.
